IP video intercom kit Villa KIS603-S3 Hikvision

3x LCD Monitor 7'' / Villa FHD 8-Series Door Station / Key Fob Reader / WiFi

The most important features of the video intercom

✅ IP Villa video intercom set with three resident stations

✅ Door station with FullHD camera, card and key fob reader and two relays

✅ Lens with a very wide viewing angle of approx. 129°

✅ Three 7" LCD internal monitors with touch technology

✅ Sabotage detection - detachment from the ground

✅ Cooperation with IP monitoring cameras - displaying camera images on video intercom monitors

✅ Automatically take and save photos when the doorbell button is not answered

✅ Built-in WiFi module and call forwarding to the HikConnect mobile application

✅ Simple installation via UTP twisted pair thanks to PoE power supply and transmission technology

The IP Video Intercom Set DS-KIS603-S3 with an additional monitor is an ideal solution for demanding users looking for high-class solutions for property entrance control systems. Thanks to the use of network transmission, the IP video intercom offers many functions that improve the safety of tenants and provide incomparably greater convenience of use (compared to analog solutions).

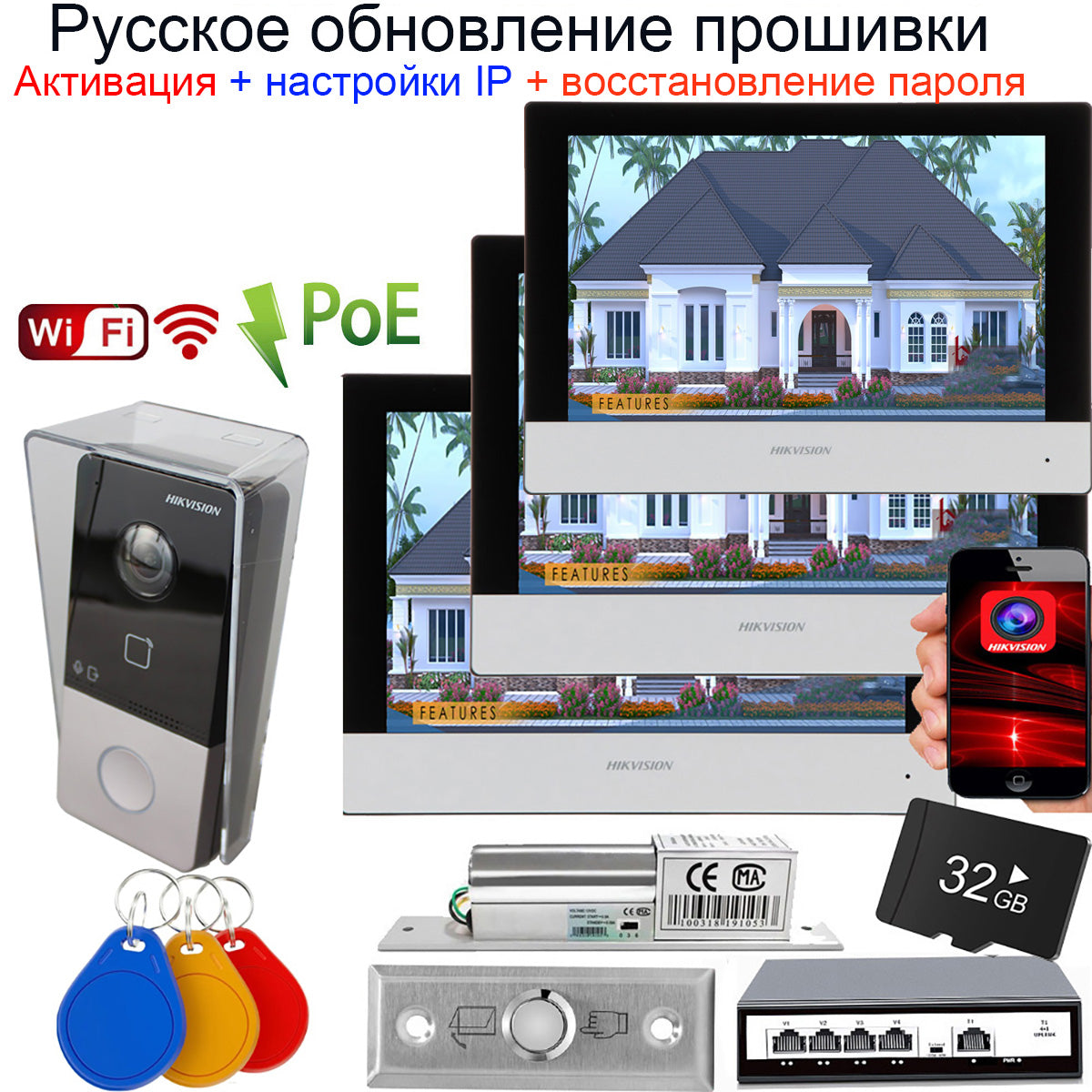

The offered set includes:

• 1-button gate station with FullHD camera providing voice communication and opening with a card or key fob
• 3 internal 7" LCD monitors enabling opening control, camera image preview and redirection to a mobile application
• 3 x 32GB microSD memory cards for saving recordings in monitors
• 3 Mifare standard proximity key fobs
• PoE switch for system power supply and network connection (wired)
• Complete set of mounting accessories - connectors, plugs, mounting frames

Connection via WiFi or PoE

Both the monitor and the door station have built-in  WiFi modules - this means that a system based on these devices can be connected:

• wireless - via WiFi and local power supply
• wired - via PoE switch and twisted pair cable

This makes the set an ideal choice also for people  who do not have the cabling ready!

Wide viewing angle - 129 degrees

The camera in the gate station uses an efficient Full HD CMOS sensor and  a wide-angle lens (129 degrees horizontally)  ensuring a smooth and clear image in any weather conditions.

Thanks to its wide viewing angle, the door station provides full visibility of callers,

8-Series Hikvision outdoor station - 1 pc.

DS-KV8113-WME1 is a Villa-type door station for Hikvision IP video intercoms . The device consists of a  Full HD camera,  a two-way voice communication system, a call button and  a proximity  card and key fob reader.

Key Features:

• Model: DS-KV8113-WME1
• Camera in the station:  FullHD CMOS 2Mpx
• Recording angle: 129 degrees (horizontal)
• Backlight: Yes, LEDs
• Relay outputs: x2 (for opening the gate and door)
• Alarm inputs:  4
• Image enhancement functions: BLC, DNR, WDR
• Video compression:  H.264
• WiFi communication:  Yes, built-in module
• Power supply:  PoE or DC 12V
• Tightness class:  IP65
• Housing: Polymer + Aluminum
• Installation:  surface-mounted
• Dimensions: a - 174mm, b - 91mm, c - 29mm

PoE 4+1 Hikvision switch - 1 pc.

The PoE switch included in the set is used to power devices directly via UTP cable. The switch also allows for the addition of additional IP network cameras to the system.

Key Features:

• Manufacturer:  Hikvision
• Number of ports:  4x PoE, 1x LAN
• Transfer speed: up to 100 MB/s

Monitor 7" Hikvision - 3 pcs.

DS-KH6320-WTE1  is an internal station of the Hikvision IP video intercom system. The monitor allows  communication  with the external door station, forwarding calls to the phone (in the application) and displaying the image from the external panel camera, as well as the image from the  IP monitoring system .

Key Features:

• Model: DS-KH6320-WTE1
• Screen type: 7"  TFT 1024x600p
• Linux operating system  . tile menu
• Monitor operation:  touch
• Polish language in the menu:  Yes
• Built-in  memory 128Mb
• Collaboration with  the HIK-CONNECT mobile application
•  SD 2.0 card slot
• Two-way  voice communication
• Built-in  WiFi module
• Housing:  ABS polymer
• PoE or 12VDC/1A power supply

Complete set of accessories

• Power supply for PoE switch
• monitor mounting adapters
• mounting adapter for door station
• complete set of connectors
