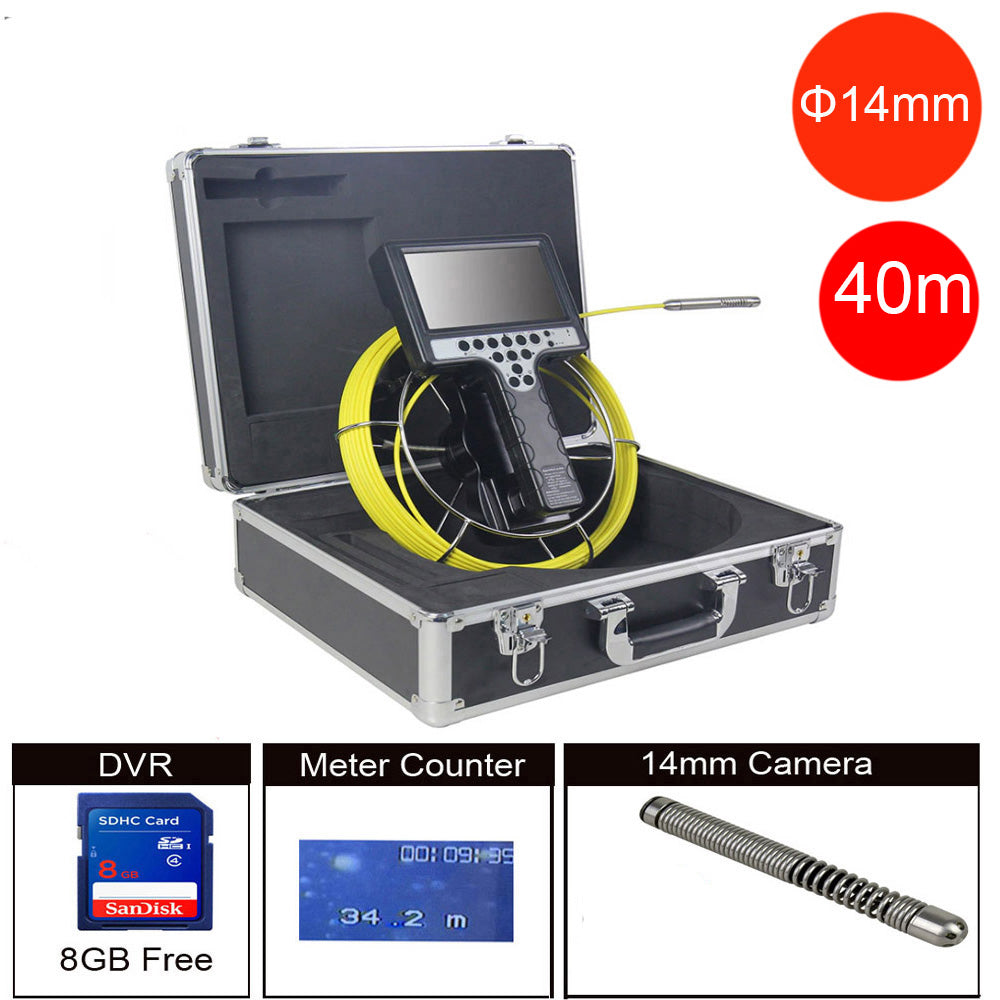

14mm dvr Drain Endoscope Pipe Inspection Camera with meter counter
14mm dvr Drain Endoscope Pipe Inspection Camera with meter counter
Couldn't load pickup availability
Features Description:

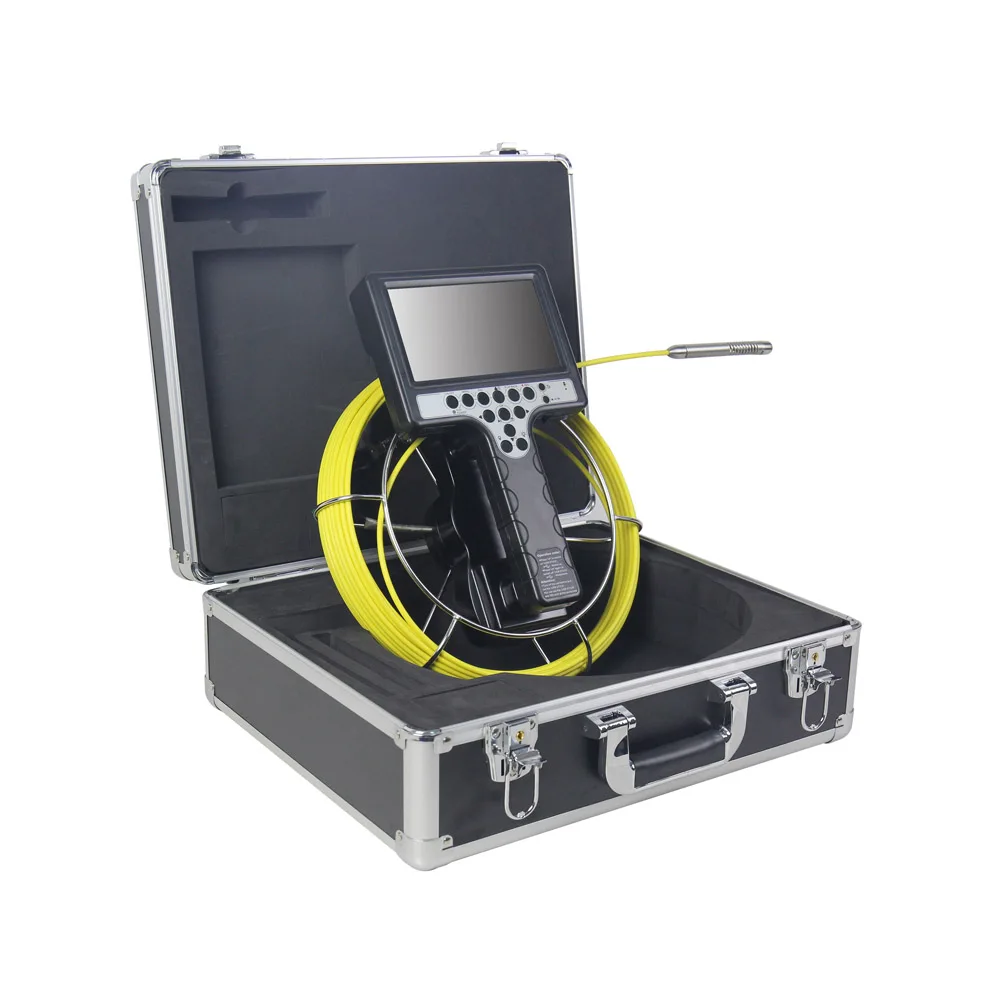

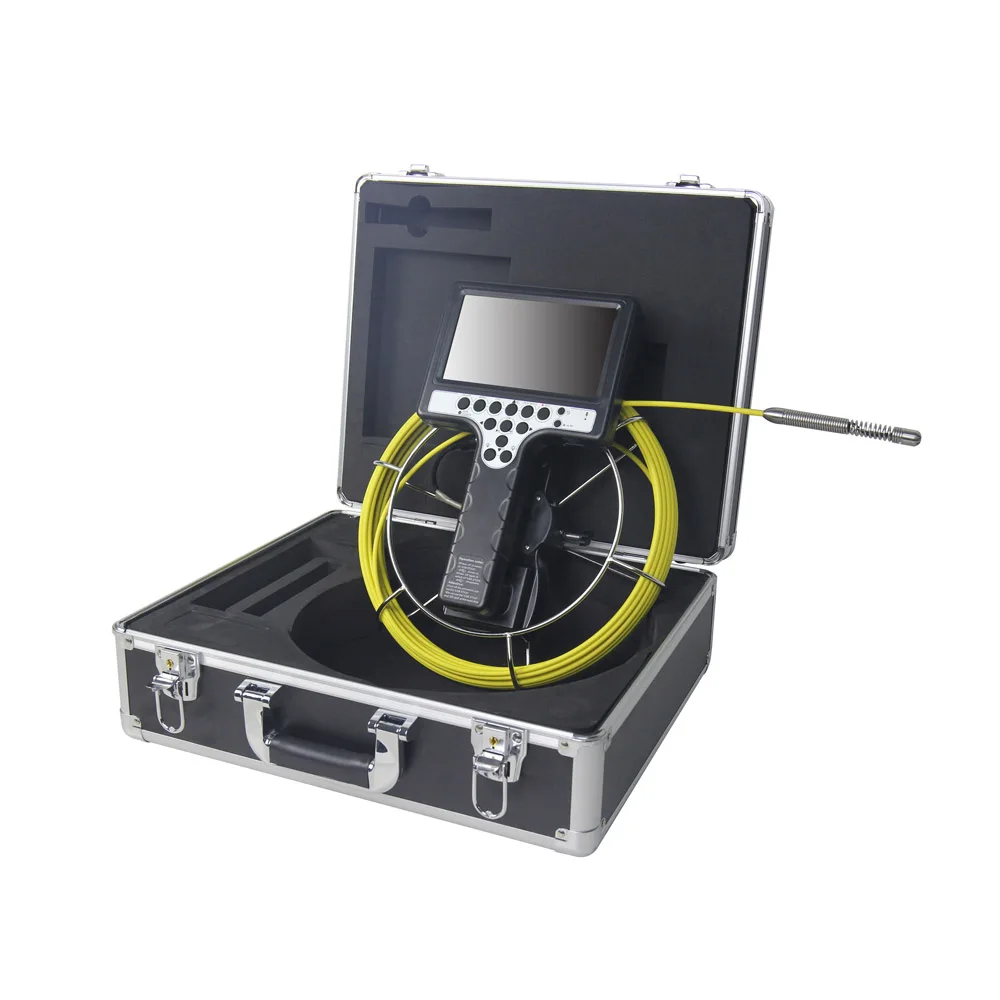

OSPHL-14 is a professional, complete video camera system with 14mm diameter camera,with glass fibers wire for sewer drain pipe snake inspection as well as other applications that not reached by human eyes
40M dvr Drain Endoscope Pipe Inspection Camera Pipe Sewer Camera Waterproof Pipe Plumbing dvr Camera with meter accounter
Kindly remind that:
1:All machine With DVR can recorder video,we send you 8GB card free

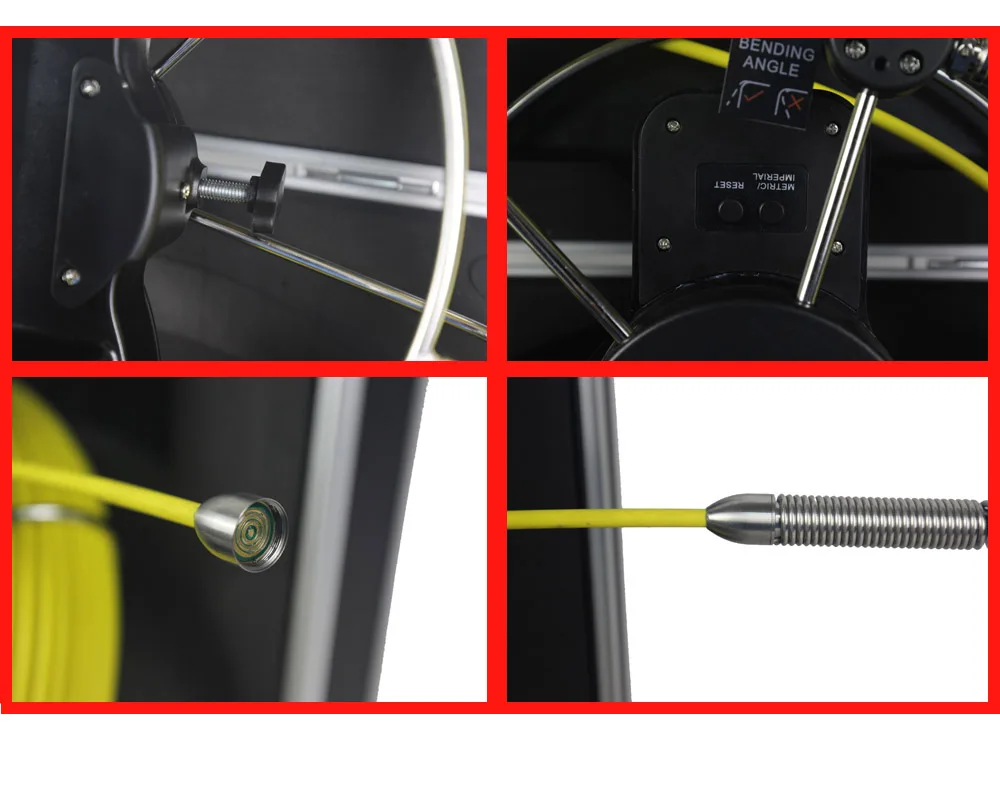

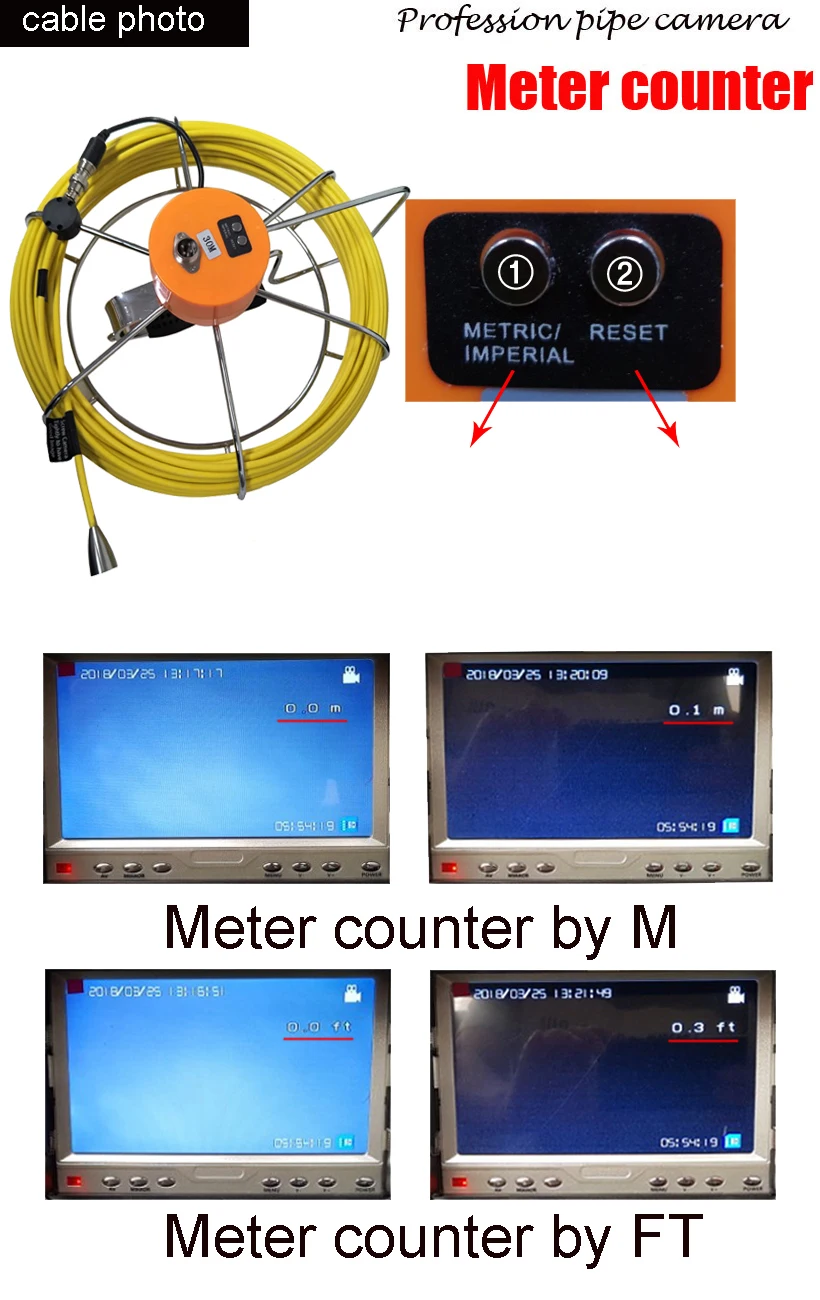

2. All machine with meter counter can show distance of cable length on the monitor.
4:also can support 512hz sonda transmitter function
5:14mm camera head
Key features:
-
High-quality CCD color video camera with 1/3" Sony CCD
-
Waterproof camera with waterproof metal body
-
Bright illuminated LEDs for working under totally darkness
-

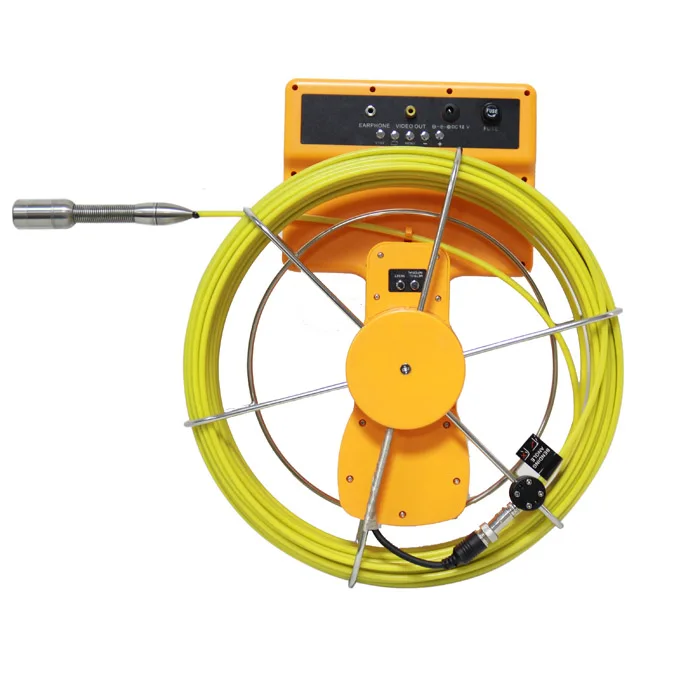

20/40m heavy-duty srigid nake anti-corrosion cable
-
7" TFT LCD color monitor with sunvisor for bright outside environment
-
Optional 12VDC/4.5AH/20HR re-chargable battery* (battery may NOT be shipped by air because of safety regulations)
-
AC adapter charger for battery
|
|
|
|
DISPLAY(inch) |
7" |
|
SYSTEM |
PAL/NTSC |
|
PIXELS |
1440*234 |
|
VIEWING ANGLE |
60/60/40/60 |
|
BRIGHTNESS(cd/m2) |
350/300 |
|
DIMESION(mm) |
189*122*24 |
|
NET WEIGHT(g) |
425 |
|
VIDEO |
1 VIDEO INPUT/1 VIDEO OUTPUT |
|
AUDIO |
- |
|
POWER SUPPLY |
12V INPUT/12V OUTPUT |
|
POWER CONSUMPTION |
<7.5W |
|
MENU LANGUAGES |
ENGLISH |
|
MODE FUNCTION |
UP/DOWN/LEFT/RIGHT REVERSE |
|
EXT. TERMINAL |
AUDIO/POWER INPUT/POWER OUTPUT |
|
TV RECEPTION |
|
|
WORKING TEMPERATURE |
-10~+50 |
|
STORAGE TEMPERATURE |
-20~+60 |
|
CAMERA TYPE |
COLOR CCD |
|
POWER CONSUMPTION |
2W |
|
SYSTEM |
PAL/NTSC (OPTIONAL) |
|
NIGHT VISIBILITY |
12 WHITE LED 3M UNDER WATER |
|
FOCUS(mm) |
3.6mm |
|
VIEWING ANGLE |
92degree |
|
ACCESSORIES |
CAMERA/20M CABLE/REMOTE CONTROLLER/RECHARGEABLE BATTERY/CONNECTING CORD/INSTRUCTION MANUAL/ PLASTIC CASE |
|
PACKAGE (PCS/CTN) |
1PCS/CTN |
|
GIFT BOX(cm |
47.7*18.9*40cm |
|
MEAS(cm) |
47.7*18.9*40cm |
|
G.W.(KG) |
9KG |
|
N.W.(KG) |
8.4KG |

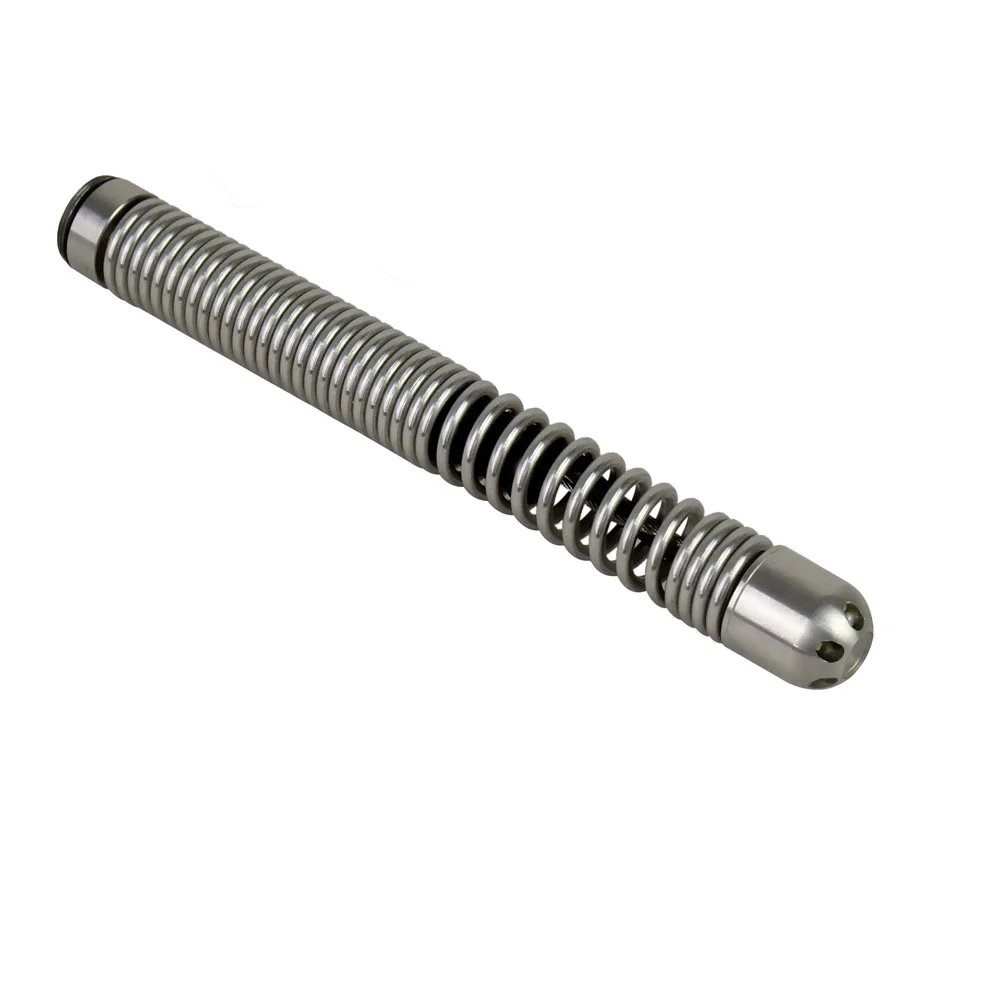

14mm Pipe Drain Sewer Camera Head Flexbile Long Spring Stainless Steel 6LED Lights Industrial Endoscope Camera Head
-

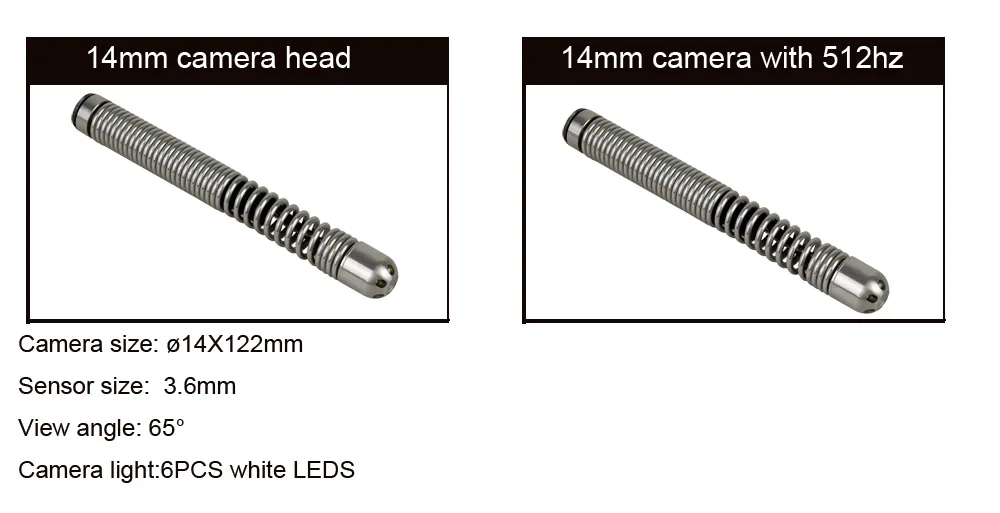

14mm camera
-
Camera size: ø14X122mm
-
Sensor size: 3.6mm
-
View angle: 65°
-
Camera work current:100MA；
-
Camera power supply:DC 12V
-
Camera light:6PCS white LEDS
-
Leds adjustable
-
Total Pixels: PAL:720X576
-
NTSC:720X480
-
Camera glass material:sapphire glass
-
Camera case material: stainless steel
-
Waterproof:IP68
-
Weight：0.056KG

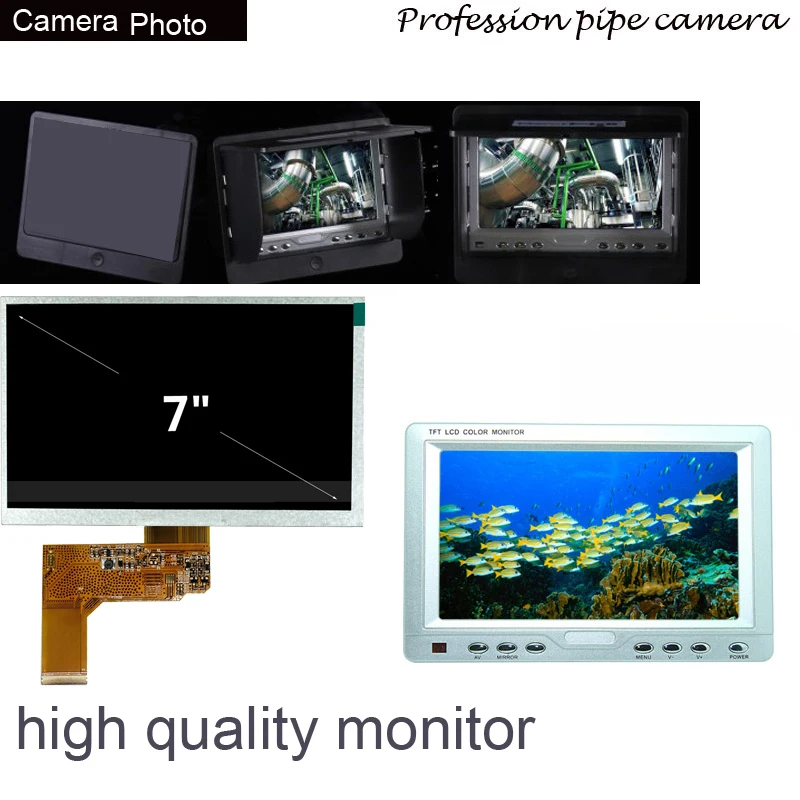

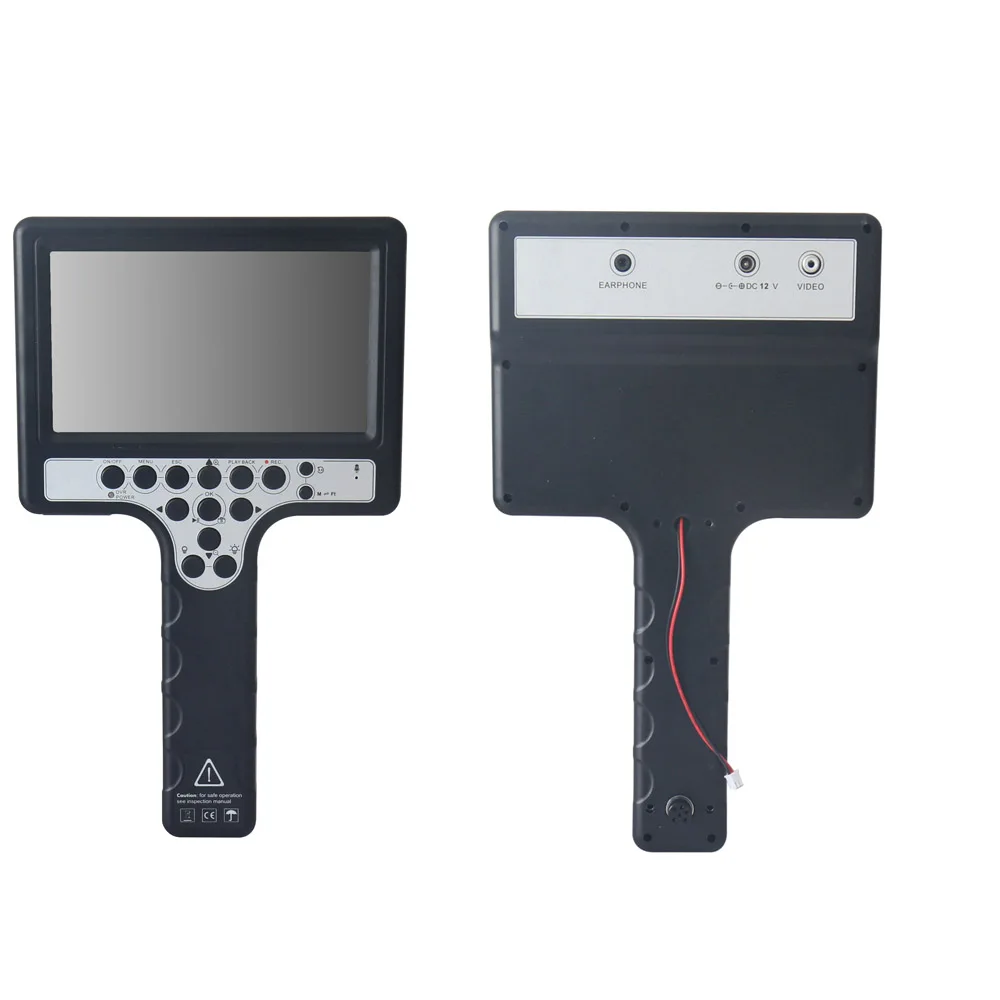

Monitor specifications
-
New TFT LCD panel, high brightness and contrast
-
Display diagnal size: 7"TFT monitor
-
Display mode: 16:9
-
Contrast: 300:1
-
Brightness: 250cd/M2
-
View angle: 65 degree left to right and 40 degree top and bottoWe accept 10m/20M/30M cable
Glass fibers wire 5mm support
A material consisting of extremely fine glass fibers, used in making various products, such as yarns, fabrics, insulators, and structural objects or parts.
