Description

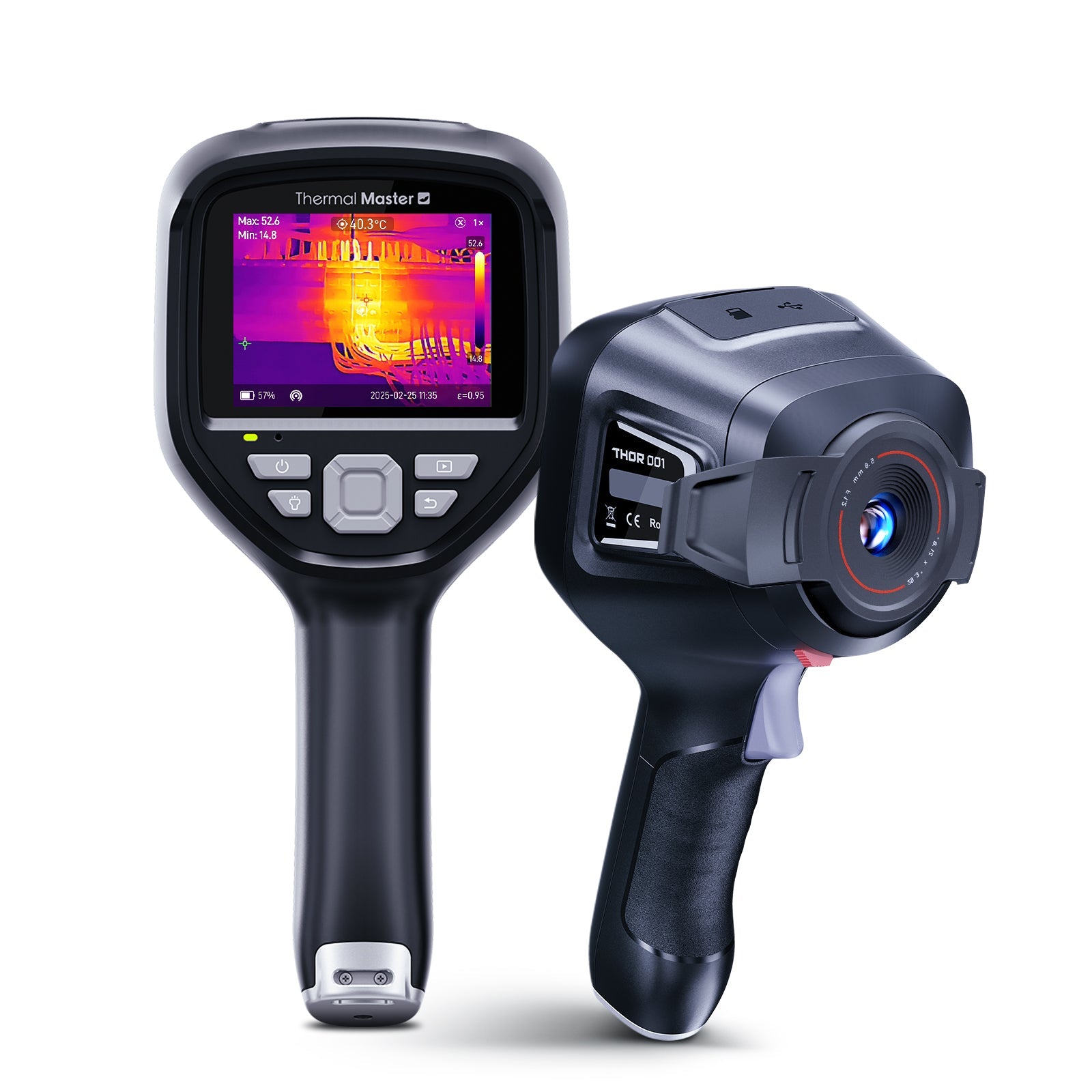

Thermal Master Thor001 Thermal Camera with Macrolens Super Resolution IR 512 x 384 Portable Infrared Camera ± 1.5°C Accuracy 2m Pixel Video Camera PC/Wifi APP Image Analysis, 10.5 Hours

• Multiple Inspection Scenarios: Suitable for HVAC, electrical, and industrial diagnostics, heat loss analysis, and electrical fault detection.
• High Thermal Imaging Performance: Built on a 256×192 infrared sensor with AI ISP super-resolution upscaling to 512×384 for clearer thermal detail and accurate fault identification.
• Temperature Measurement Range: Supports temperature measurement from –20℃ to 550℃ (–4℉ to 1022℉) with selectable low, high, and auto measurement modes.
• Fixed Focus Thermal Imaging: Fixed-focus optics with a 0.3 m minimum focus distance and a 40° × 30° field of view for stable mid-range inspection.
• Powered by High-Performance Hardware: High-sensitivity thermal detector (NETD <35 mK on THOR001, <40 mK on THOR002), 2-meter drop-tested housing, 60Hz display, and up to 10 hours of operation.
• Multi-Function Temperature Analysis: Includes emissivity, distance, and ambient compensation, isotherm analysis, temperature alarms, and shutter calibration.
• Adjustable Thermal Visualization: Multiple image modes, color palettes, and 2× / 4× digital zoom for flexible thermal viewing.

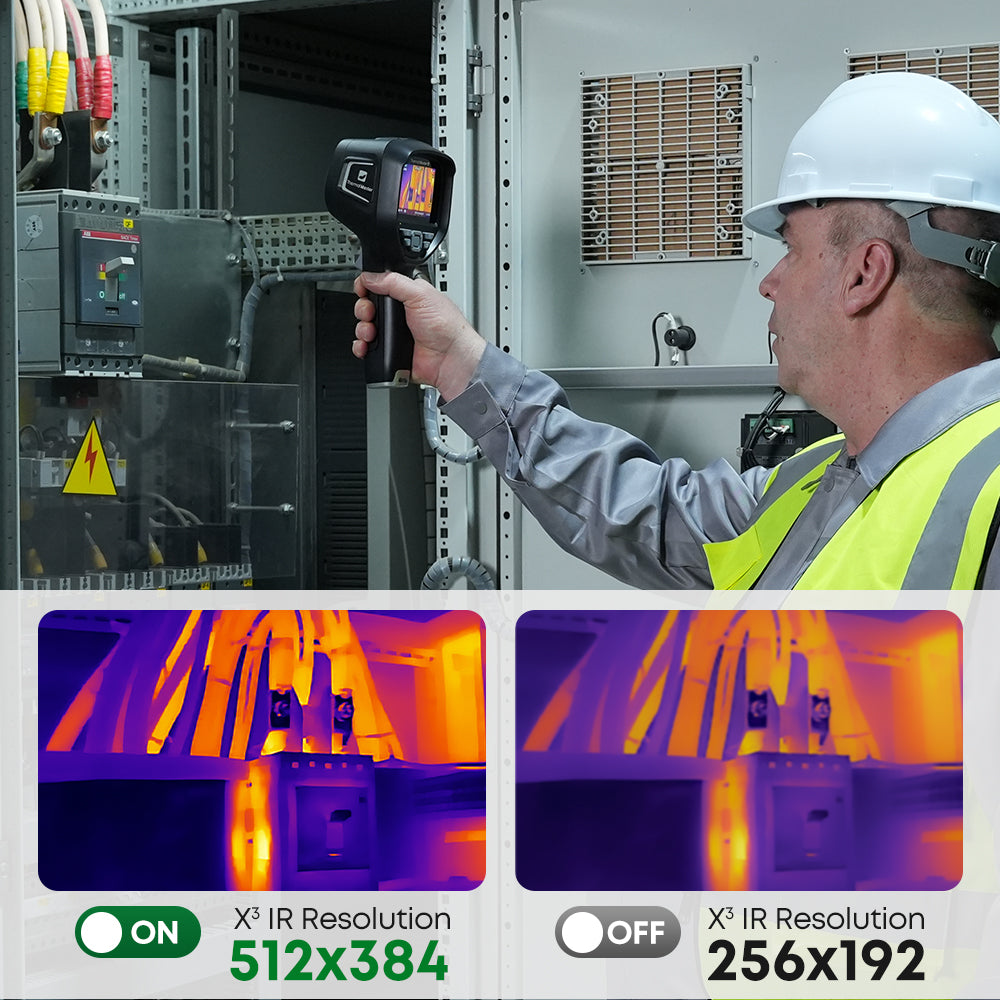

512x384 X³IR Resolution

Thor thermal imager uses X³ Super Resolution to boost 256×192 to 512×384, delivering clearer detail for industrial, electrical, and HVAC inspections.

3.5'' 640×480 IPS Screen

Thermal Master Thor thermal imager features a 2MP visible light camera and a 3.5" 640×480 IPS display for exceptional clarity. This handheld thermal imager supports a smooth 60Hz refresh rate, and offers ultra-fine 40mK sensitivity, enabling faster, more detailed inspections.

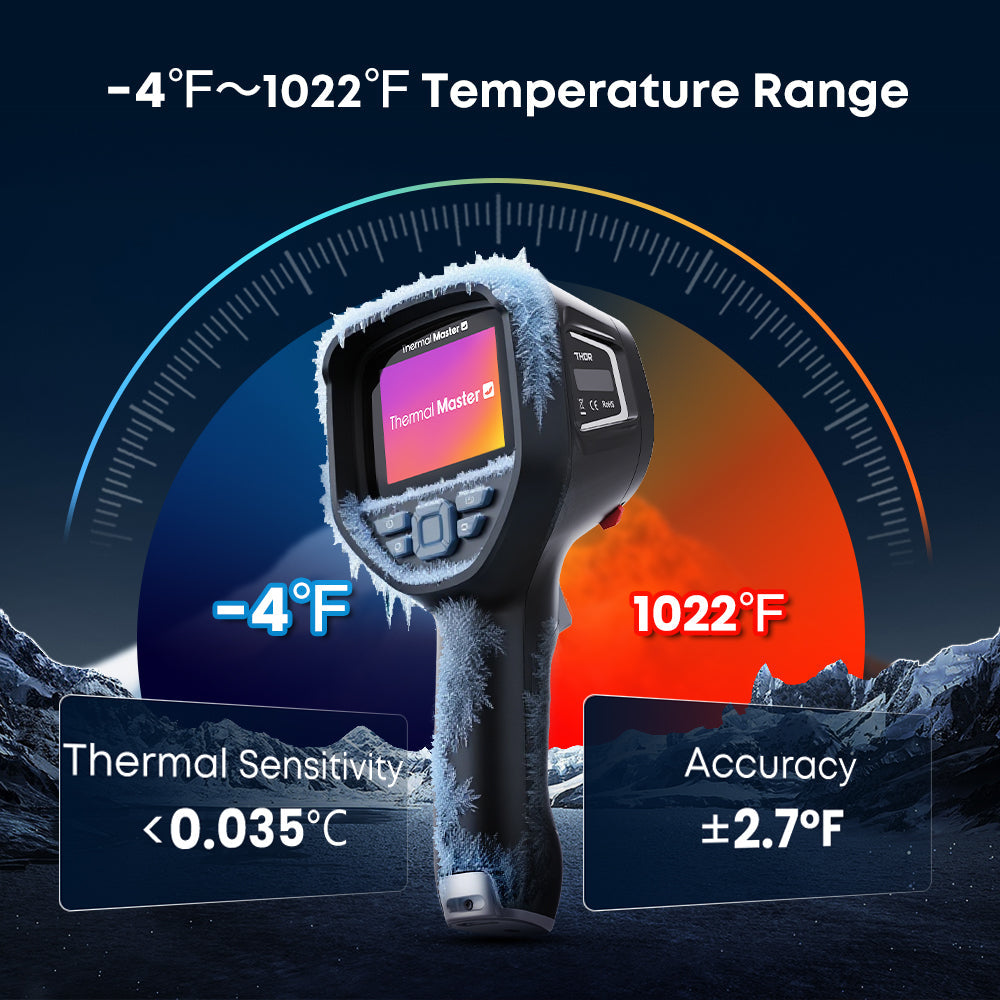

Precise Temp Measurement

Thermal Master Thor thermal imager measures -4℉ to 1022℉ with ±2.7℉ accuracy. Features custom emissivity for precise, versatile thermal imaging.

IR-Fuse™

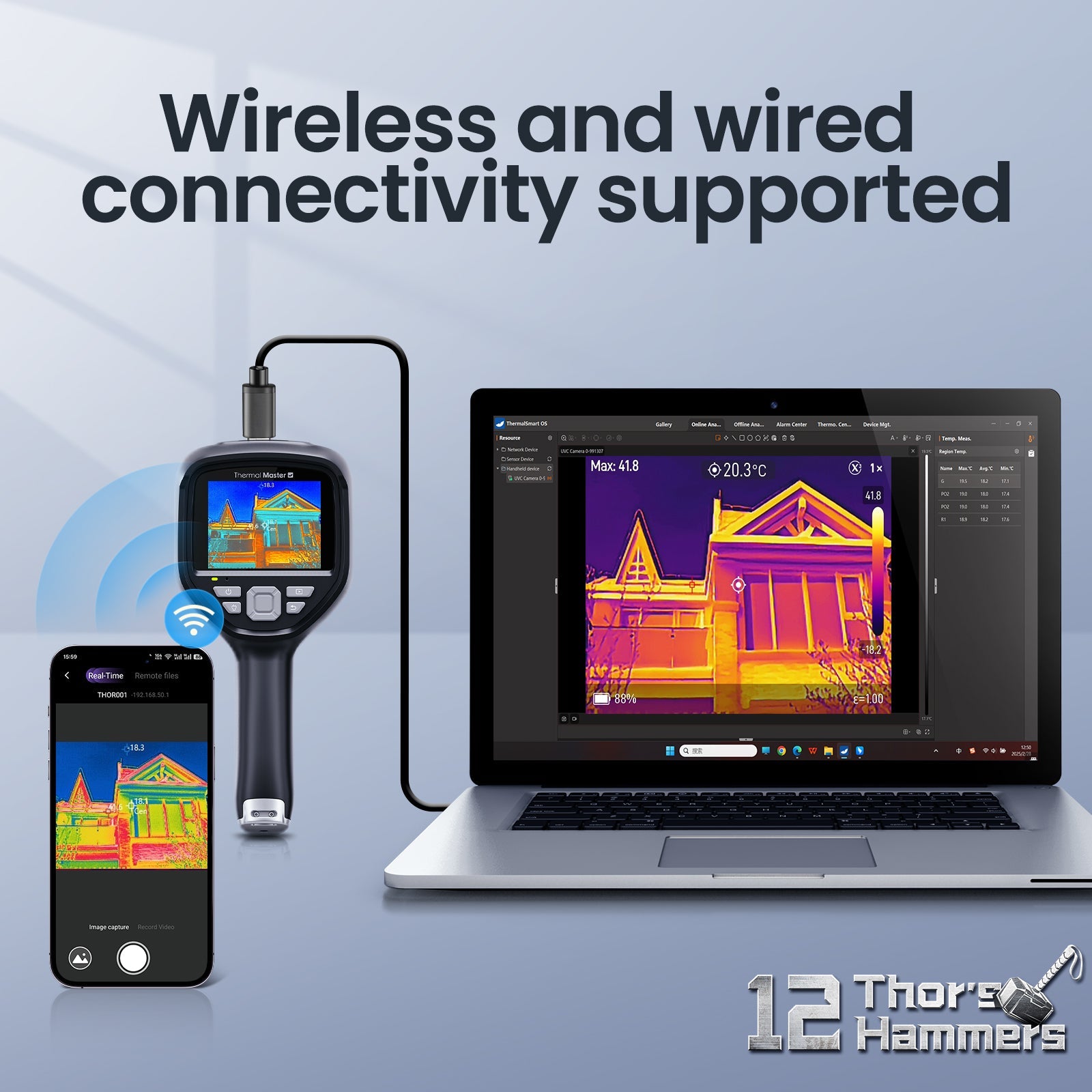

Thermal Imager with USB & WiFi

Thor offers USB and WiFi image transmission for real-time analysis on PCs and mobile devices, and includes free PC software for post-inspection calibration of emissivity, distance, and ambient temperature.

Long Battery, Fast Charging

Thor features a 5000mAh battery for up to 10.5 hours of use with 18W fast charging for quick recharging.

9‑Point Precision Scanning

Thor features 9‑point temperature scanning with a DIY temperature bar, delivering precise visualization for any detection scenario.

Laser Targeting, Voice Notes

Thor Thermal Master uses a laser targeting system for inspections up to 100% faster and a noise‑reducing mic for instant, clear voice notes.

Durable, Drop-Resistant Design

Designed with a reinforced ABS ergonomic body and an alloy base, Thor001 Thermal Master also features a quick‑shield lens and 2‑meter drop resistance, making it ideal for harsh environments.

High-Sensitivity thermal Imaging

Thor features a high‑sensitivity sensor with NETD <35 mK, delivering ultra‑clear imagery through the Razor™ algorithm, X³ IR™ resolution, and IQ+ precision temperature measurement for accurate diagnostics in any environment.
